Ever felt overwhelmed by the technical jargon on an LED product sheet? You’re not alone. Terms like lumens, lux, and IP rating are crucial for picking the perfect light, but they can seem like a foreign language.
Worry no more! This guide will break down the essential terms you need to know, using simple, everyday analogies. By the end, you’ll be able to shop for lighting with confidence.
Part 1: The Language of Light Itself
1. Lumens (lm): The Total Amount of Light
Technical Definition: Lumens measure the total quantity of visible light emitted by a source in all directions. It’s the raw output, known as “Lumen”.
Simple Analogy: Think of it as the “total amount of water coming out of a garden sprinkler”. A higher lumen count means a “sprinkler” that outputs more “light-water.” When you want a bright space, look for a high-lumen fixture.
2. Lux (lx): How Bright a Surface Is
Technical Definition: Lux measures “Illuminance”—how much light actually falls on a surface. One lux equals one lumen per square meter. It answers the question, “How bright is my desk or my garden path?”
Simple Analogy: If lumens are the sprinkler’s output, lux is “how wet your face feels”. Stand close to the sprinkler (the light source), and you get very wet (high lux). Stand far away, and you feel less water (low lux). The same lamp can provide high lux on a small table but low lux across an entire backyard.
Lux has a direct and dramatic relationship with distance. It can be summed up by one fundamental rule in lighting: Double the Distance, Quarter the Brightness.
Here is a simple example. Imagine you have a flashlight shining on a wall. At 1 meter, it creates a bright spot. Let’s say the brightness is 100 Lux. When you move the flashlight to 2 meters (double the distance), the light spreads out. It now covers 4 times the area. The total amount of light (Lumens) from the flashlight hasn’t changed, but it’s now spread over a much larger area, the brightness on the wall drops to 100 ÷ 4 = 25 Lux.
This is why you need very focused, high-intensity lights (with high Candela) to illuminate objects that are far away. The light must be concentrated into a powerful beam to fight the rapid drop in lux over distance.
3. Candela (cd): The “Intensity” of a Beam
Technical Definition: Candela measures “Luminous Intensity”—the power of light in a specific direction. It describes how concentrated the light beam is.
Simple Analogy: Imagine a water hose. “Candela is the water pressure”. A high-pressure nozzle (high candela) produces a tight, powerful jet that travels far. A wide-spray nozzle (low candela) disperses water gently. This is why a spotlight has a high candela value.
4. Color Temperature (K): The “Color” of the Light
Technical Definition: Measured in Kelvins (K), this describes the hue of the white light emitted, ranging from warm to cool.
Simple Analogy: Think of heating a metal rod. It first glows “reddish (2700K, Warm White)”—cozy and relaxing, perfect for bedrooms. As it gets hotter, it turns “bright white (4000K, Cool White)”—energizing and ideal for kitchens. At its hottest, it becomes “bluish-white (5000K+, Daylight)”—crisp and focused, great for workshops.
5. Color Rendering Index (CRI): The “Truth-Teller” for Colors

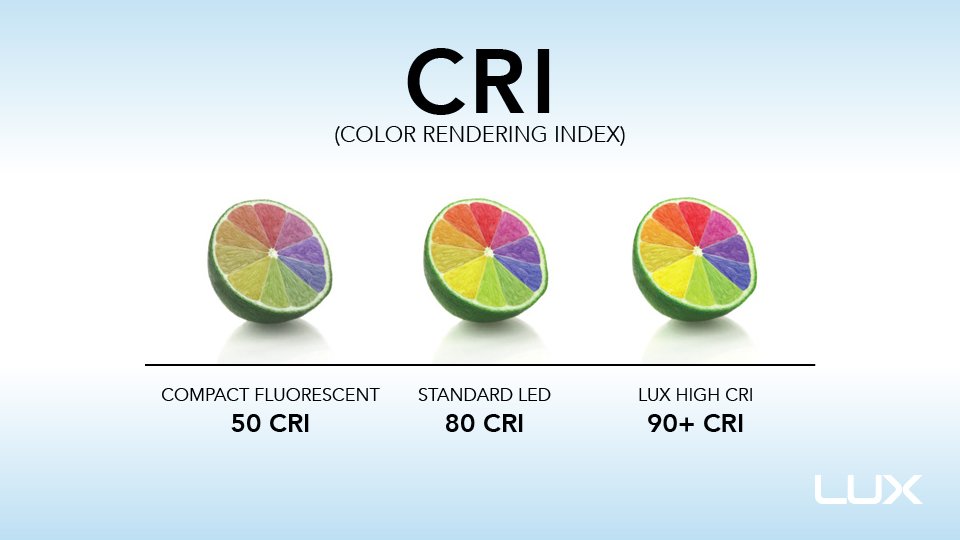

Technical Definition: CRI (Ra) is a scale from 0 to 100 that measures a light source’s ability to reveal the true colors of objects compared to natural sunlight (which has a CRI of 100).
Simple Analogy: CRI is like the “quality of your smartphone’s camera”. A high CRI (90+) is a premium camera—colors look vibrant and accurate. A low CRI (below 80) is a cheap camera—colors appear dull, washed-out, and unnatural. For art galleries, retail stores, or kitchen counters, always choose high-CRI lighting.
Part 2: The Language of Fixture Design & Performance
6. Beam Angle: The “Spread” of the Light
Technical Definition: This is the angle at which light is distributed from the fixture. A narrow beam angle gives a concentrated spot of light, while a wide beam angle creates a soft, widespread wash.
Simple Analogy: It’s the difference between a “laser pointer and a floodlight”. Use a narrow beam (e.g., 15°) to highlight a object, commonly used in museum, art museum and etc. Use a wide beam (e.g., 110°) to generally illuminate, such as workshop, living room.
7. IP Rating: The “Armor” Against Elements
Technical Definition: The Ingress Protection (IP) code indicates the level of protection against solids (first digit) and liquids (second digit). It’s vital for outdoor, bathroom, or industrial fixtures.
Simple Analogy: Think of it as the fixture’s “weatherproof clothing”.
IP20: A standard T-shirt. Fine for dry, indoor living rooms.
IP65: A high-quality rain jacket. It’s dust-tight and protected against water jets, perfect for garden lights.
IP68: A professional diving suit. It can be permanently submerged, making it ideal for pond or pool lights.
8. Power Factor (PF): The Measure of Efficiency

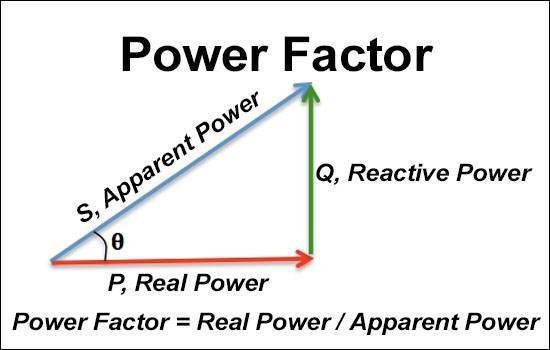

Technical Definition：Power Factor is a measure of how effectively electrical power is converted into useful work (like light). It’s a ratio between Real Power (measured in Watts) and Apparent Power (measured in Volt-Amps or VA), ranging from 0 to 1.
Real Power (Watts): The power that actually performs the work—in this case, generating light and heat. Apparent Power (Volt-Amps): The total power drawn from the electrical grid, which includes both the real power and a hidden component called reactive power used to energize magnetic fields in components like drivers.
Formula: Power Factor (PF) = Real Power (W) / Apparent Power (VA)**
An ideal Power Factor is 1.0, meaning all the power drawn from the grid is being used to produce light.
Simple Analogy:
Imagine you are pushing a shopping cart in a supermarket.The groceries you buy and take home are the “Real Power”. This is the useful work you actually wanted. The empty space taken up by the cart itself is the “Reactive Power”. It is necessary to carry your groceries but has no value on its own. The total capacity of the shopping cart is the “Apparent Power.
A low Power Factor (e.g., 0.5): This is like pushing a very large cart that is only 50% full with groceries. The remaining 50% of the cart’s space is wasted. You used much more capacity than you needed for your actual goods.
A high Power Factor (e.g., 0.95): This is like choosing a cart that is the perfect size. Your groceries fill it almost completely, resulting in highly efficient use of space.
A low Power Factor forces the electrical grid to constantly “transport” a lot of “empty shopping carts.” This places an unnecessary burden on transmission lines and wastes energy.
Therefore, choosing LED lights with a high Power Factor (typically >0.9) is not only an efficient choice but also a more environmentally friendly and grid-friendly one.
Part 3: The Language of Safety & Longevity
9. Withstand Voltage (Dielectric Strength): The Safety Backbone

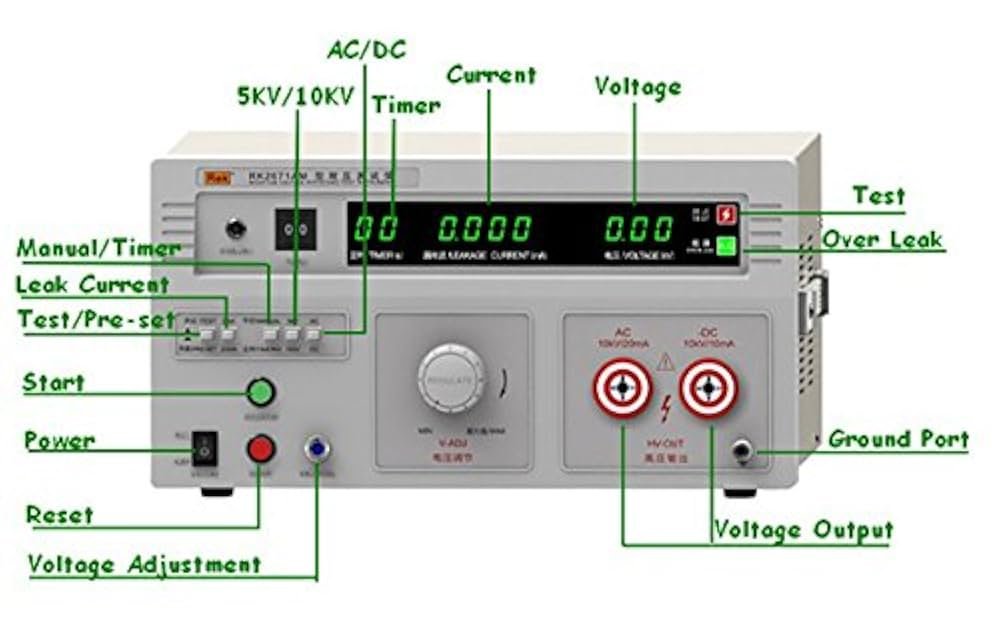

Technical Definition: This is the maximum voltage the electrical insulation inside a driver or fixture can handle indefinitely without breaking down. It’s a fundamental “safety test” to prevent electric shock.
Simple Analogy: It’s the “height and strength of a dam”. The normal grid voltage (120V/230V) is the regular water level. The withstand voltage test is like a massive, once-in-a-century flood. A fixture that passes this test proves its “dam” won’t break, ensuring your absolute safety.
10. Surge Protection: The Guardian Against Power Spikes

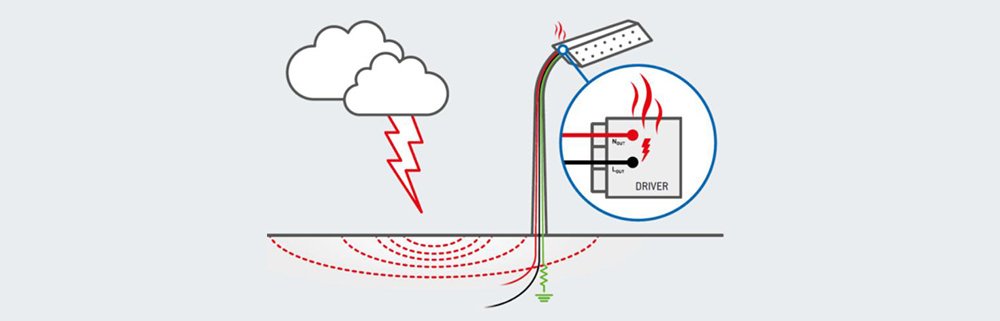

Technical Definition: This is a fixture’s ability to absorb and divert sudden, brief overvoltage spikes (surges) on the power line, typically caused by lightning strikes or large appliances switching on/off.
Simple Analogy: Surge protection is the city’s “lightning rod and emergency spillway”. When a lightning strike (a massive power surge) hits the grid, the surge protector acts as the spillway, safely channeling this destructive energy away from your valuable LED chips and driver, preventing them from being “flooded” and destroyed.
Understanding these terms empowers you to make informed decisions. You’re no longer just buying a “bright light.” You’re selecting a fixture with the right beam angle to create ambiance, a high CRI to make colors pop, a robust IP rating for your patio, and built-in surge protection to ensure it lasts for years.
Use this guide as your cheat sheet, welcome to join us in exploring lighting solutions.
